VectorPro® force testing software

VectorPro software is designed and developed by Mecmesin specifically for use with the OmniTest range of universal testing machines. VectorPro's drag and drop interface enables operators to create everything from complex materials testing procedures to component and product testing.

Built-in stress and strain calculations, backed-up by powerful reporting tools, make VectorPro the perfect choice for routine quality control checks and more detailed analysis of materials properties. Perfect for use in both QC and R&D laboratories.

Audit trails and e-signature functionality are embedded in the software's architecture to support customers in the medical and pharmaceutical industry for compliance with FDA 21 CFR Part 11.

NOTE: Our products which run Emperor™ software cannot be upgraded to run VectorPro.

VectorPro MT testing software offers testing freedom and ease of use

Freedom and support to meet your testing needs

Easily create step-by-step test routines

Start measuring stress/strain, tensile, shear, flexure and compressive forces to evaluate your materials. It takes just a few minutes to create your own step-by-step test routines.

We will help get you started and are always on hand to support you.

Unlimited user licenses

Every test system comes with a full and unlimited user licence for VectorPro testing software. There are no hidden extras or limitations - you get the full package.

Share data files easily around the world

Copy and install the software on any computer making it easier to share data files with colleagues around the world.

Key features

Design

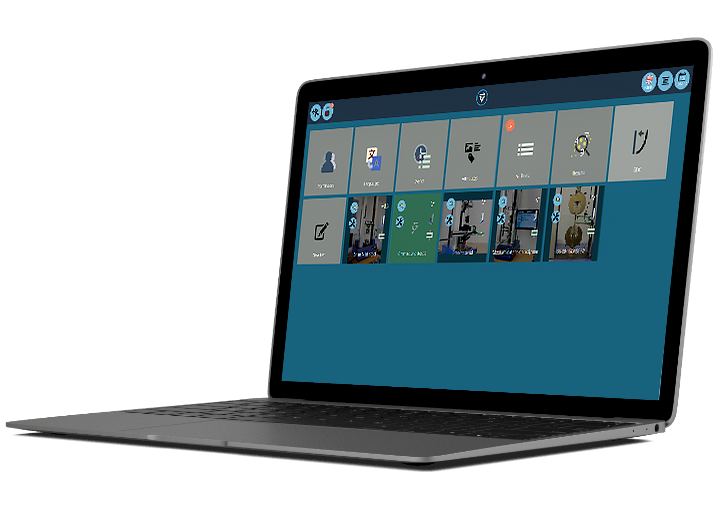

Intuitive icon-driven interface and workspace

Advanced 'drag and drop' test routine builder

Personalised user accounts and favourites

Touchscreen enabled

Batch testing sets of samples

Control

Stress/strain machine control

Active load control (load holding & load ramping)

System deflection compensation

Manage user permissions and audit trail

Methods for texture analysis

Report

Built-in materials testing calculations

Customisable test report templates

Print and e-mail reports in Adobe PDF format

Export data to Excel and other analysis packages

Support for CFR 21 processes and SQL server database

VectorPro MT controls the materials testing system

Software control

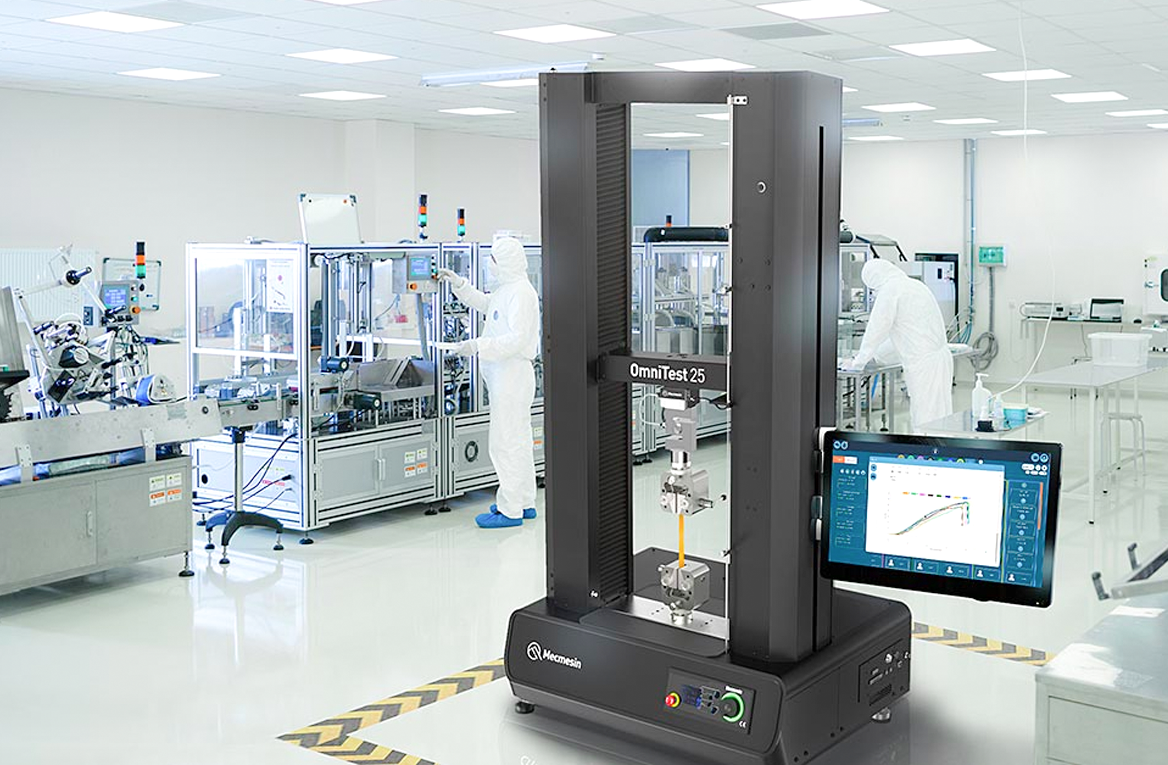

VectorPro testing software runs on Windows computers, taking full control of the test frame motor whilst simultaneously collecting data from the ELS loadcell and displacement channels.

Connect an extensometer to measure elongation directly on the specimen.

Start your chosen routine from a PC or console and VectorPro automates the complete test procedure.

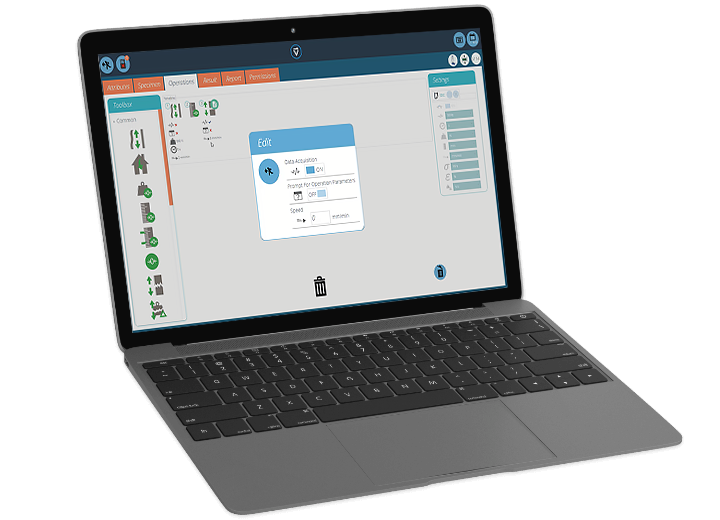

Easy to use

Design and configure step-by-step test routines to match your testing procedures. An intuitive 'drag and drop' interface makes it easy to create, customise and save tests.

VectorPro guarantees precision testing by providing stress-strain machine control, basic and active load control, as well as system deflection compensation.

Take control

Personalised user accounts enable quick access to commonly performed tests, and restricts who can create or run tests, view results and produce reports.

VectorPro's event log enables supervisors to authorise actions with e-signatures, providing an audit trail for FDA 21 CFR Part 11.

Gather essential information with a 'prompt for value' (compulsory user input) feature before performing a test.

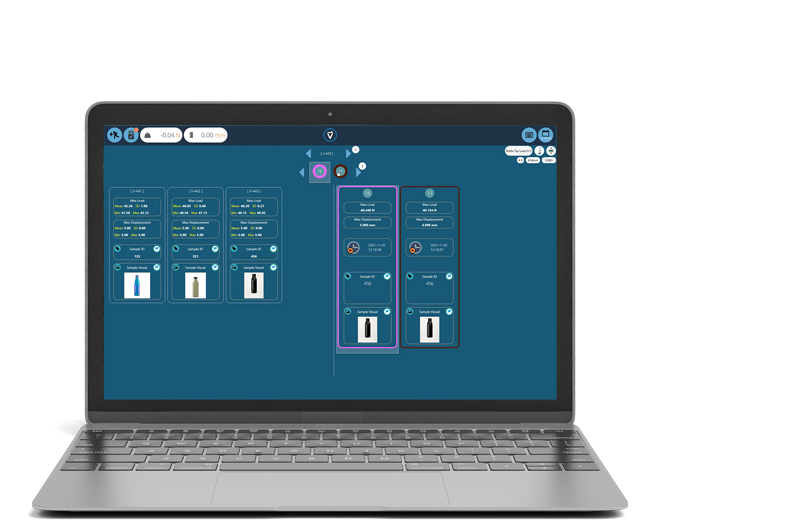

Laptop VectorPro screen with individual test results of part of a set of batches

Batch testing and automation

Batch testing in VectorPro uses a pre-configured test to create a semi-automatic or fully automatic testing system on sets of products and batches of the products.

It simplifies the use of VectorPro by automatically opening the test and creating a new test with a graph for every sample, exporting data and printing test reports. Test reports can contain overlay graphs or individual test graphs.

This functionality also allows monitoring of the batch progress and can be started, paused and re-started at any time.

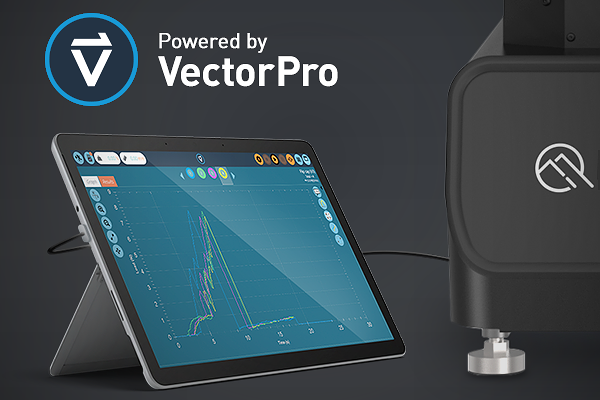

Realtime results

See exactly how your specimen is performing on a live graph as all data is captured at 500 times per second (500 Hz).

Easily change graph axes between stress/strain, load/displacement and load/time to better present and understand test results.

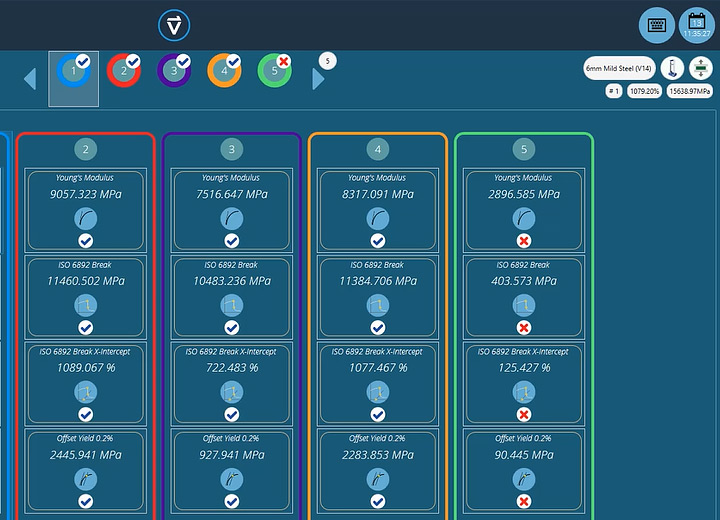

Pass or fail indicator

A clear pass (blue tick) or fail (red cross) indicator, according to your specification criteria, alerts operators immediately leaving no doubt about the status of each specimen.

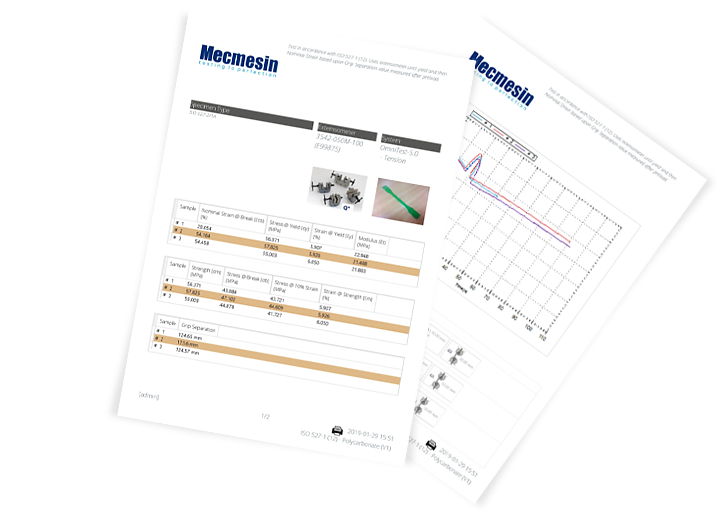

Example PDF reports generated by VectorPro testing software

Report and analyse

A powerful reporting module allows you to configure test reports to present data the way your customer wants to see it.

Built-in calculations for Young's Modulus, Offset Yield, Ultimate Tensile Strength, Nominal Strain and more, makes analysing the data simple.

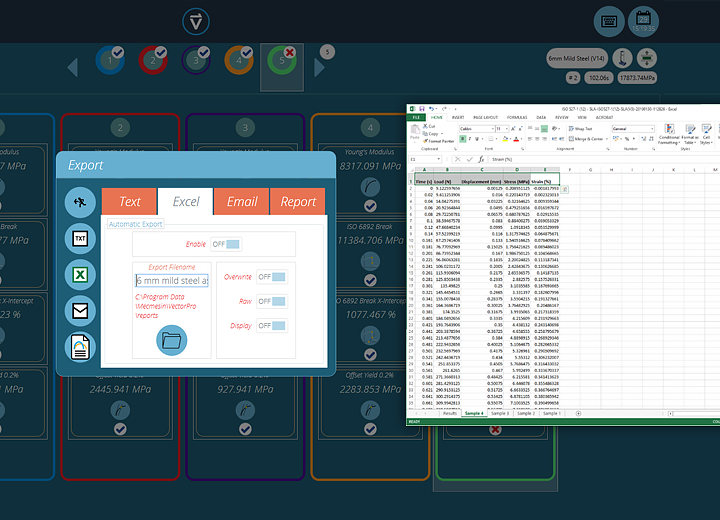

Share your data

All the test data can be automatically exported to Microsoft Excel or other data-analysis packages.

You can install VectorPro MT on other computers to easily share customised tests and your results data.

We're here to help

Our technical engineers will help you get started and show you how to configure routines to your exact testing requirements.

We are always on hand to support you if you need any advice or guidance after installation.

Supported products

OmniTest 0.5/1/2.5

Universal testing machine

PC-driven
OmniTest 0.5/1/2.5

Our new range of bench-top universal testing machines (UTMs) is designed for tensile and compression testing of materials, products and components.

These versatile universal testing systems are driven by our powerful and intuitive VectorPro™ testing software, making them easy to use for implementing quality assurance standards across all industries. The PC-driven model has the flexibility to run the test routines on your choice of computer hardware.

The OmniTest 0.5 kN, 1 kN and 2.5 kN models are part of the single-column range. They occupy minimal bench space and, at under 30kg, can be easily transported. The 2.5 kN model is particularly popular as a general-purpose tester whilst the 0.5 and 1kN models have extended column lengths making them particularly suitable for long-elongation, low-force testing.

Mecmesin - OmniTest single column 2.5 kN
Console-driven
OmniTest Touch 0.5/1/2.5

Our new range of bench-top universal testing machines (UTMs) is designed for tensile and compression testing of materials, products and components.

The OmniTest Touch model runs on a responsive touchscreen console driven by our powerful and intuitive VectorPro™ testing software. This fully integrated version makes a convenient and easy-to-use, standalone solution for implementing quality assurance standards across all industries.

The OmniTest Touch 0.5 kN, 1 kN and 2.5 kN models are part of the single-column range. They occupy minimal bench space and, at under 30kg, can be easily transported. The 2.5 kN model is particularly popular as a general-purpose tester whilst the 0.5 and 1kN models have extended column lengths making them particularly suitable for long-elongation, low-force tester.

OmniTest Touch benchtop universal testing machine - single column 0.5-2.5 kN

Our new range of bench-top universal testing machines (UTMs) is designed for tensile and compression testing of materials, products and components.

These versatile universal testing systems are driven by our powerful and intuitive VectorPro™ testing software, making them easy to use for implementing quality assurance standards across all industries. The PC-driven model has the flexibility to run the test routines on your choice of computer hardware.

The OmniTest 0.5 kN, 1 kN and 2.5 kN models are part of the single-column range. They occupy minimal bench space and, at under 30kg, can be easily transported. The 2.5 kN model is particularly popular as a general-purpose tester whilst the 0.5 and 1kN models have extended column lengths making them particularly suitable for long-elongation, low-force testing.

OmniTest 5/7.5

Universal testing machine

PC-driven
OmniTest 5/7.5

Our new range of bench-top universal testing machines (UTMs) is designed for tensile and compression testing of materials, products and components.

These versatile universal testing systems are driven by our powerful and intuitive VectorPro™ testing software, making them easy to use for implementing quality assurance standards across all industries. The PC-driven model has the flexibility to run the test routines on your choice of computer hardware.

The OmniTest 5 kN and 7.5 kN models are part of the single column range. They take up minimal bench space and their mid-range load capacity makes them ideal for applications that might have required a larger investment in a twin-column tester.

OmniTest benchtop universal testing machine - single column 5-7.5 kN
Console-driven
OmniTest Touch 5/7.5

Our new range of bench-top universal testing machines (UTMs) is designed for tensile and compression testing of materials, products and components.

The OmniTest Touch model runs on a responsive touchscreen console driven by our powerful and intuitive VectorPro™ testing software. This fully integrated version makes a convenient and easy-to-use, standalone solution for implementing quality assurance standards across all industries.

The OmniTest Touch 5 kN and 7.5 kN models are part of the single column range. They take up minimal bench space and their mid-range load capacity makes them ideal for applications that might have required a larger investment in a twin-column tester.

OmniTest Touch benchtop universal testing machine - single column 5-7.5 kN

Our new range of bench-top universal testing machines (UTMs) is designed for tensile and compression testing of materials, products and components.

These versatile universal testing systems are driven by our powerful and intuitive VectorPro™ testing software, making them easy to use for implementing quality assurance standards across all industries. The PC-driven model has the flexibility to run the test routines on your choice of computer hardware.

The OmniTest 5 kN and 7.5 kN models are part of the single column range. They take up minimal bench space and their mid-range load capacity makes them ideal for applications that might have required a larger investment in a twin-column tester.

OmniTest 10/25/50

Universal testing machine

PC-driven
OmniTest 10/25/50

Our new range of bench-top universal testing machines (UTMs) is designed for tensile and compression testing of materials, products and components.

These versatile universal testing systems are driven by our powerful and intuitive VectorPro™ testing software, making them easy to use for implementing quality assurance standards across all industries. The PC-driven model has the flexibility to run the test routines on your choice of computer hardware.

The twin-column OmniTest is available in three frame sizes with load ratings of 10 kN, 25 kN, and 50 kN. These all-purpose UTMs are ideally suited to testing stiff materials requiring higher loads, as well as being perfect for long-elongation, low-force tests and for mounting larger specimens that cannot easily be accommodated on single-column test frames.

OmniTest benchtop universal testing machine - twin column 10-50 kN
Console-driven
OmniTest Touch 10/25/50

Our new range of bench-top universal testing machines (UTMs) is designed for tensile and compression testing of materials, products and components.

The OmniTest Touch model runs on a responsive touchscreen console driven by our powerful and intuitive VectorPro™ testing software. This fully integrated version makes a convenient and easy-to-use, standalone solution for implementing quality assurance standards across all industries.

The twin-column OmniTest is available in three frame sizes with load ratings of 10 kN, 25 kN, and 50 kN. These all-purpose UTMs are ideally suited to testing stiff materials requiring higher loads, as well as being perfect for long-elongation, low-force tests and for mounting larger specimens that cannot easily be accommodated on single-column test frames.

OmniTest benchtop universal testing machine with console - twin column 10-50 kN

Our new range of bench-top universal testing machines (UTMs) is designed for tensile and compression testing of materials, products and components.

These versatile universal testing systems are driven by our powerful and intuitive VectorPro™ testing software, making them easy to use for implementing quality assurance standards across all industries. The PC-driven model has the flexibility to run the test routines on your choice of computer hardware.

The twin-column OmniTest is available in three frame sizes with load ratings of 10 kN, 25 kN, and 50 kN. These all-purpose UTMs are ideally suited to testing stiff materials requiring higher loads, as well as being perfect for long-elongation, low-force tests and for mounting larger specimens that cannot easily be accommodated on single-column test frames.
