VectorPro Lite for Vector instruments

VectorPro Lite is a graphing software, designed and development by Mecmesin, for connection to our range of force and torque gauges.

Running a test is simple. Operators can effortlessly navigate around when using the software and PDF test reports are generated at the touch of a button.

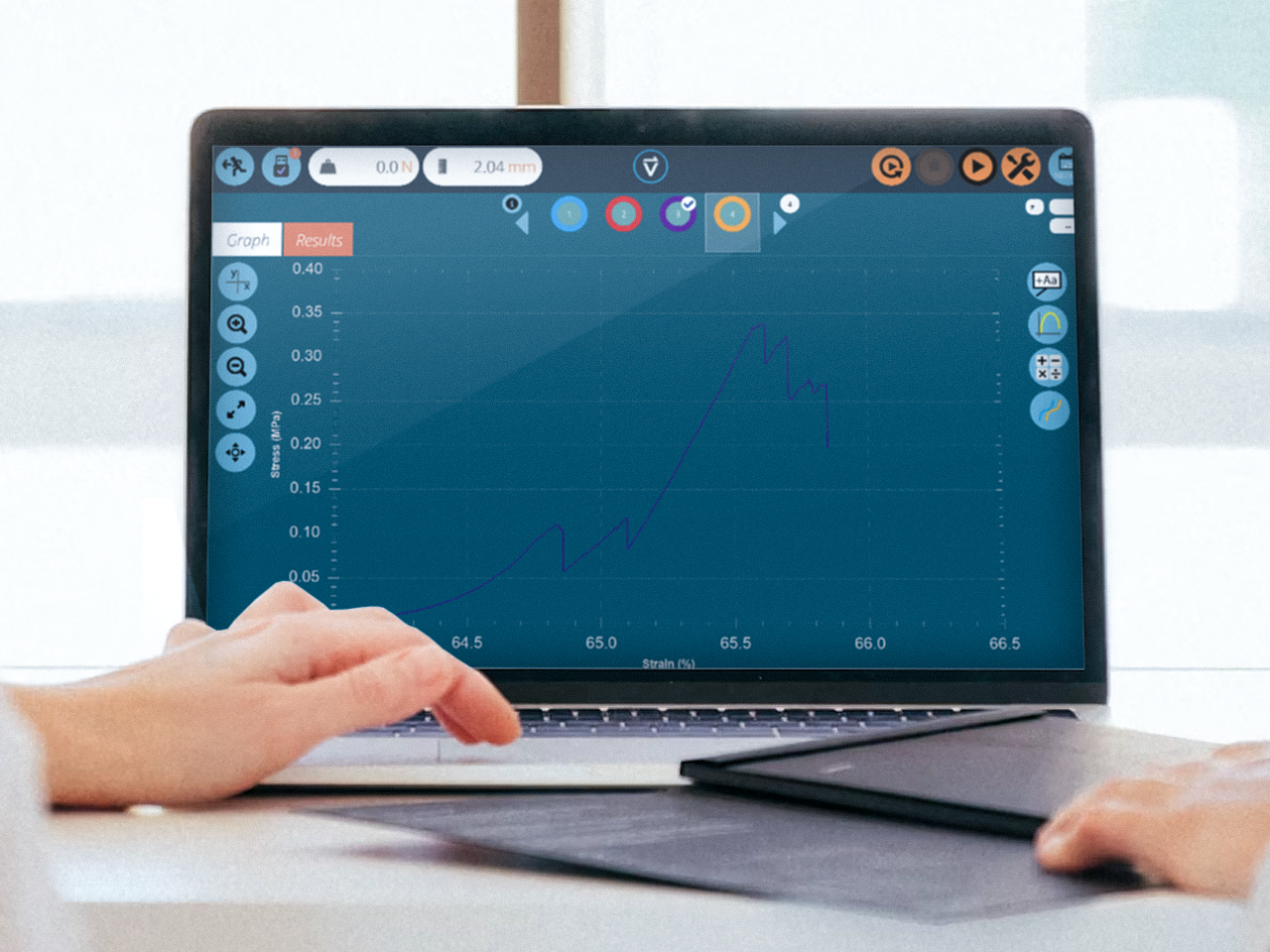

TerraFixing compression testing specimen results on VectorPro

Collect data from instruments

Expand your force or torque gauge to plot the curve of tension, compression or torque on a graph.

Data is collected automatically from the gauge, via a USB interface cable, for presentation in graphical format with full analysis to generate a table of pass/fail results.

Export the results and data to Excel or use them to generate test reports in PDF format.

Key software features

Design

Intuitive icon-driven interface and workspace

Personalised user accounts and favourites

Touchscreen enabled

Control

Live plotting of data with auto-scaling of axis

Overlay multiple samples on the same graph

Colour-coding of samples for instant identification

Report

Calculate results with clear pass/fail indicators

Customisable test report templates

Export data to Excel and other analysis packages

Supported products

Mecmesin | VFTI touchscreen force and torque indicator

VFTI

Touchscreen force and torque indicator

A powerful and versatile touchscreen display unit for use with Mecmesin's 'Smart' range of interchangeable force and torque sensors. Ideal for testing where high accuracy and flexibility are key requirements.

The VFTI, powered by Vector OS, instantly recognises the connected sensor and can be employed as a handheld device for testing on the move or it can be integrated into your own test rig as the core measurement device.

VFTI fitted to a Vortex-dV system with a PET water bottle closure torque accessories
A range of sensors and accessories are available to send torque values to the display
VFTI fitted to a Vortex-dV measuring PET water bottle cap torque characteristics
Complex force and torque measuring system using VFTI to indicate pull and rotation of closure
View product
Mecmesin | VTG Tornado touchscreen cap torque tester with bottle sample manual closure/opening torque tester

VTG Tornado

Touchscreen cap torque tester

The VTG Tornado touchscreen torque tester is portable and rated to IP54 for testing the applied and release torque of a diverse range of products.

Measures up to 10 N.m (90 lbf.in) to capture opening and closing torque of caps/closures intended to be opened by hand.

Record peak readings with a much greater accuracy than analogue torque meters and plot the graph to identify when the bridges of a tamper-evident band are broken. Reach new heights with a simple and cost-effective solution for torque applications.

VTG Tornado - Manual opening/closure torque measurement of cosmetics container
VTG Tornado - Manual opening/closure torque measurement of small bottle
VTG Tornado - Measure bridge-torque of tamper-evident closures
VTG Tornado - IP54 rated splashproof enclosure
View product
Mecmesin | VFTI touchscreen force and torque indicator

VFTI

Touchscreen force and torque indicator

A powerful and versatile touchscreen display unit for use with Mecmesin's 'Smart' range of interchangeable force and torque sensors. Ideal for testing where high accuracy and flexibility are key requirements.

The VFTI , powered by Vector OS, instantly recognises the connected sensor and can be employed as a handheld device for testing on the move or it can be integrated into your own test rig as the core measurement device.

View product
Mecmesin | VFG touchscreen digital force gauge

VFG

Touchscreen digital force gauge

Introducing the VFG, the most advanced touchscreen force gauge, powered by Vector OS.

A handheld instrument built for tough environments to deliver accuracy and reliability. Designed for tensile and compressive testing in the field or as part of a testing system for use in Production, QC and R&D labs.

View product
