VectorPro® torque testing software
VectorPro software is designed and developed by Mecmesin specifically for use with the HelixaPro and VortexPro range of torque testing machines. VectorPro's drag and drop interface enables operators to create torque testing procedures for everything from complex component testing to routine product testing.
Built-in standard calculations, backed-up by powerful reporting tools, make VectorPro the perfect choice for routine quality control checks and more detailed analysis of components and assemblies. Perfect for use in both QC and R&D laboratories.
Audit trails and e-signature functionality are embedded in the software's architecture to support customers in the medical and pharmaceutical industry for compliance with FDA 21 CFR Part 11.
Please note: Our products which run Emperor™ software cannot be upgraded to run VectorPro.
Intuitive icon-driven interface and workspace
Advanced 'drag and drop' test routine builder
Personalised user accounts and favourites
Batch testing sets of samples
Torque/angle machine control
Active torque-hold and cycle functions
Manage user permissions and see an audit trail
Digital I/O's for automation of testing
Built-in standard calculations
Customisable templates for test reports
Print and email test results automatically
Export data to Excel and other analysis packages
Support for CFR 21 processes and SQL server database

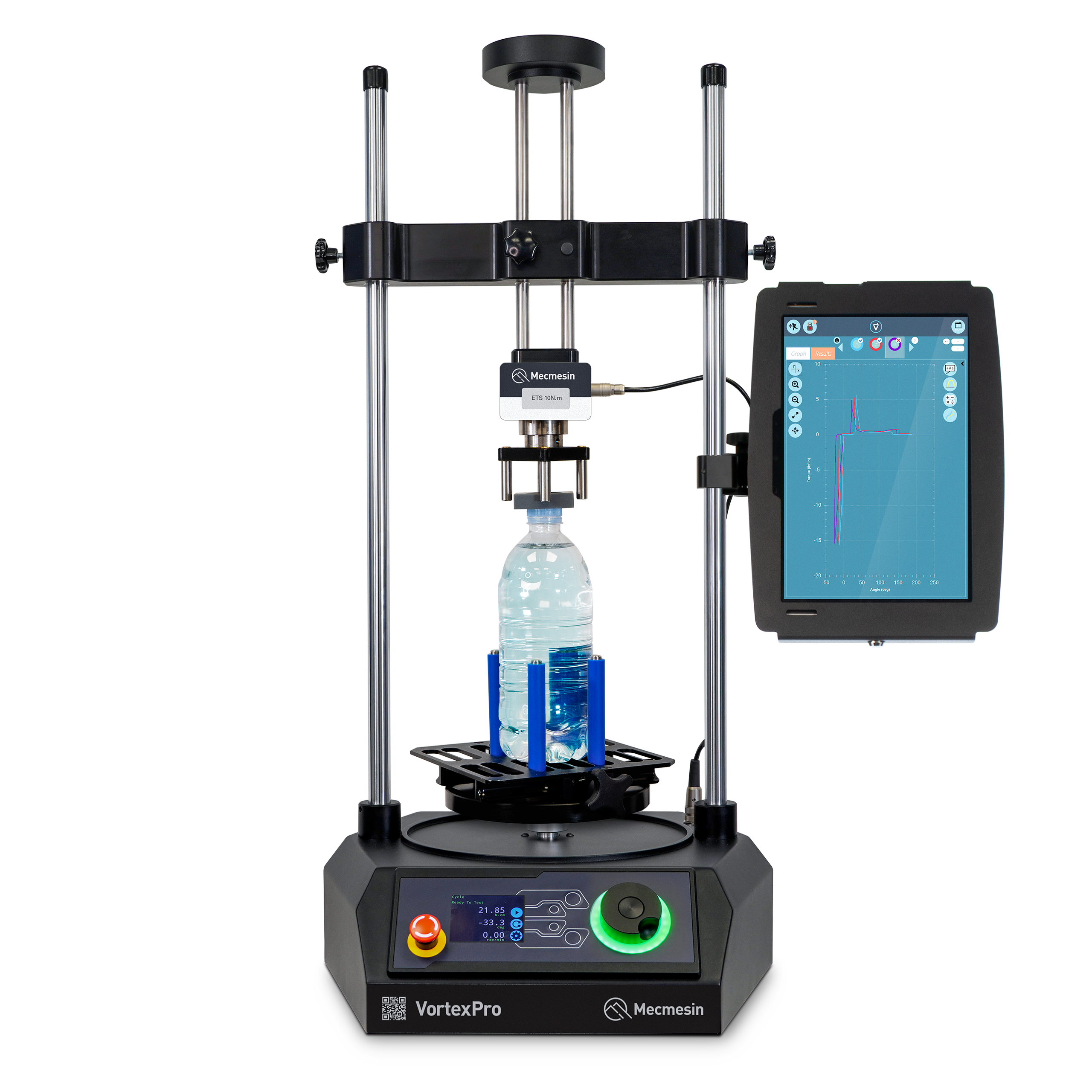

VectorPro testing software runs on Windows computers, taking full control of the test frame motor whilst simultaneously collecting data from the ETS torque sensor and angular rotation encoders.
Start your chosen routine from a PC or touchscreen console and VectorPro automates the complete test procedure.
Easy to use
Design and configure step-by-step test routines to match your testing procedures. An intuitive 'drag and drop' interface makes it easy to create, customise and save tests.
VectorPro guarantees precision testing by providing torque/angle machine control with the ability to cycle and loop back to any stage of the test programme based on the live torque/angle values it is currently seeing.
Personalised user accounts enable quick access to commonly performed tests, and restrict who can create or run tests, view results and produce reports.
VectorPro's event log enables supervisors to authorise actions with e-signatures, providing an audit trail for FDA 21 CFR Part 11.
Gather essential information with a 'prompt for value' (compulsory user input) feature before performing a test.
Batch testing and automation

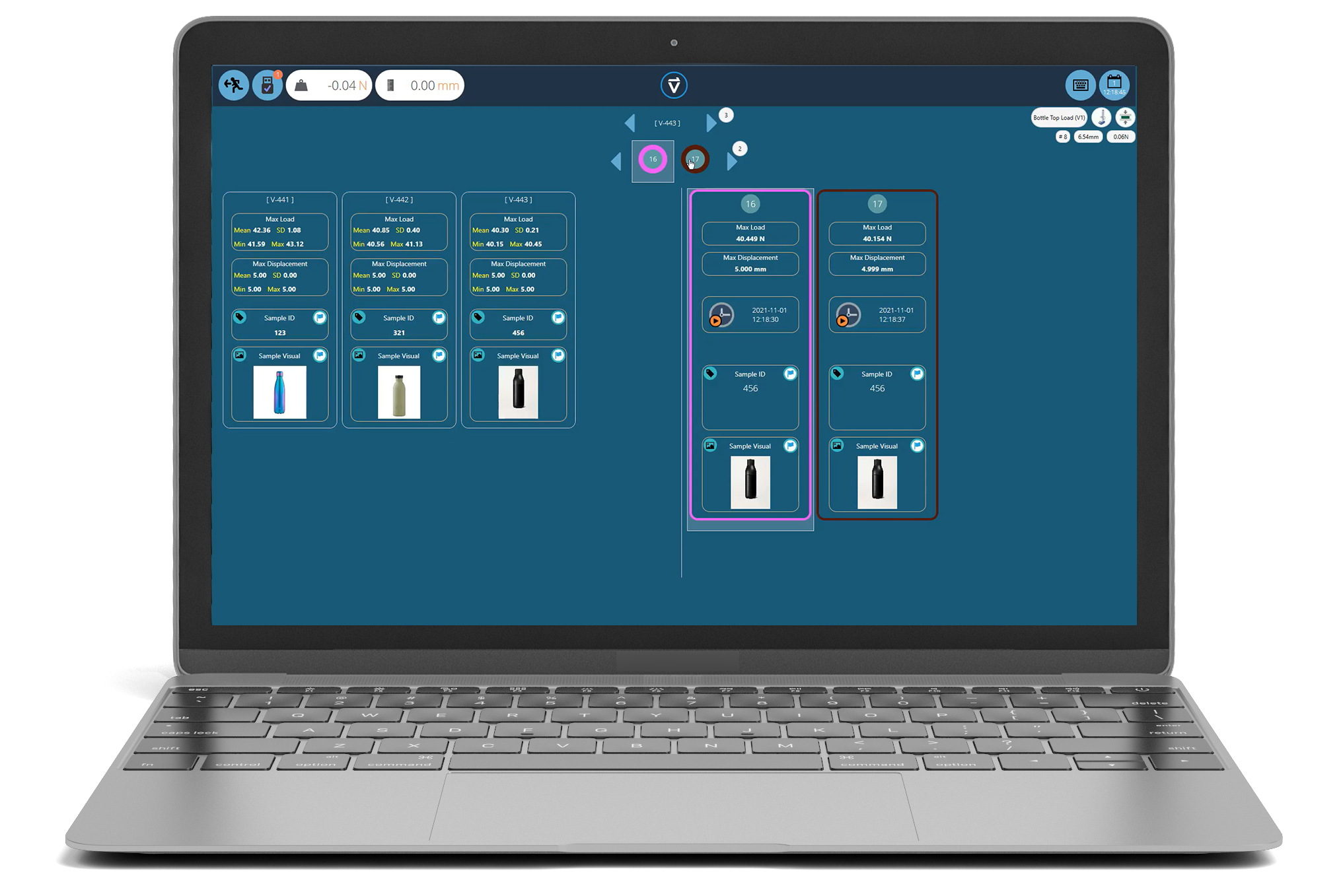

Batch testing in VectorPro uses a pre-configured test to create a semi-automatic or fully automatic testing system on sets of products and batches of the products.
It simplifies the use of VectorPro by automatically opening the test and creating a new test with a graph for every sample, exporting data and printing test reports. Test reports can contain overlay graphs or individual test graphs.
This functionality also allows monitoring of the batch progress and can be started, paused and re-started at any time.
See exactly how your specimen is performing on a live graph as all data is captured at 1000 times per second (1000 Hz).
Easily change graph axes between torque/angle and torque/time to better present and understand test results.
Pass or fail indicator
A clear pass (blue tick) or fail (red cross) indicator, according to your specification criteria, alerts operators immediately leaving no doubt about the status of each specimen.
Report and analyse

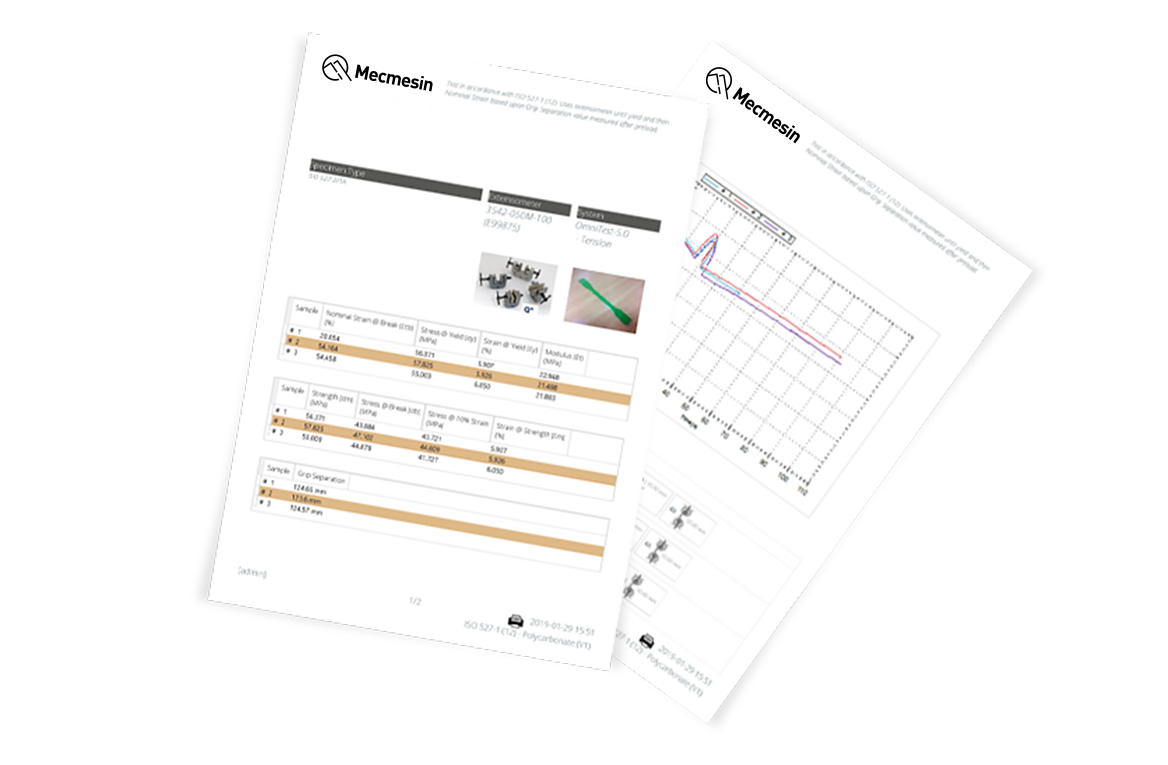

A powerful reporting module allows you to configure test reports to present data the way your customer wants to see it.
Built-in calculations for maximum torque, minimum torque, average torque over time/angular rotation makes analysing the data simple. You can even add your own custom calculations.
Share your data
All the test data can be automatically exported to Microsoft Excel or other data-analysis packages.
You can install VectorPro on other computers to easily share customised tests and your results data.
We're here to help
Our technical engineers will help you get started and show you how to configure routines to your exact testing requirements.
We are always on hand to support you if you need any advice or guidance after installation.
