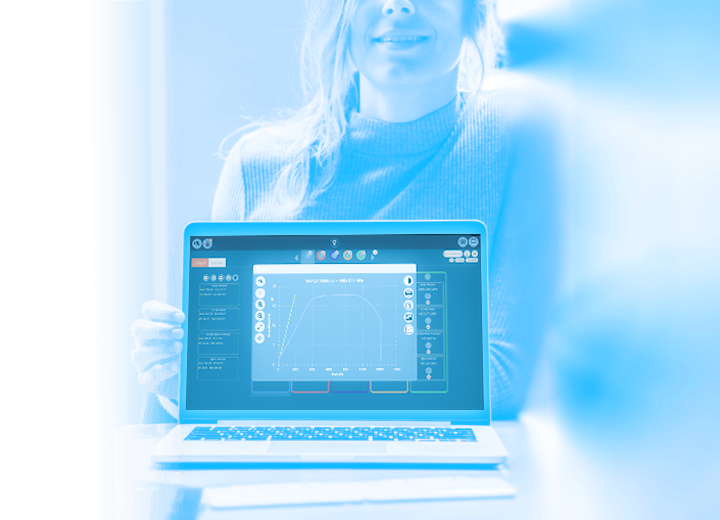

Laptop demonstrating VectorPro test software

VectorPro® materials testing software

Designed and developed by Mecmesin specifically for our OmniTest and MultiTest-dV range of materials testers.

Intuitive touch-friendly interfaces and a powerful drag and drop test builder, enabling operators to create everything from complex materials testing procedures to simple product testing, with audit trails and e-signatures supporting FDA 21 CFR Part 11 compliance. Ideal for both production Quality Control (QC) or Research and Development (R&D) environments.

A fully automated software-controlled closure torque tester for the ultimate in measurement accuracy

Power and flexibility for your materials testing

Create standards-based tests and your own custom routines

Start measuring stress/strain, tensile, shear, flexure and compressive forces to evaluate your materials. It takes just a few minutes to create your own step-by-step test routines.

We will help get you started and are always on hand to support you.

VectorPro's key features

Design

Intuitive icon-driven interface and workspace

Advanced 'drag and drop' test routine builder

Personalised user accounts and favourites

Touchscreen enabled

Batch testing sets of samples

Control

Stress/strain machine control

Active load control (load holding & load ramping)

System deflection compensation

Manage user permissions and audit trail

Methods for texture analysis

Report

Built-in materials testing calculations

Customisable test report templates

Print and e-mail reports in Adobe PDF format

Export data to Excel and other analysis packages

Support for CFR 21 processes and SQL server database

Mecmesin OmniTest UTM with non-contact extensometer (VectorPro Vision)

Precise software control

VectorPro MT testing software runs on Windows 10 computers, taking full control of the test frame motor whilst simultaneously collecting data from the ELS loadcell and displacement channels.

Connect an extensometer to measure elongation directly on the specimen.

Start your chosen routine from a PC or console and VectorPro MT automates the complete test procedure.

Laptop displaying VectorPro test software test builder

Intuitive test builder

Design and configure step-by-step test routines to match your testing procedures. An intuitive 'drag and drop' interface makes it easy to create, customise and save tests.

VectorPro MT guarantees precision testing by providing stress-strain machine control, basic and active load control, as well as system deflection compensation.

Laptop displaying VectorPro test software user workspace

Controls that mean business

Personalised user accounts enable quick access to commonly performed tests, and restricts who can create or run tests, view results and produce reports.

VectorPro MT's event log enables supervisors to authorise actions with e-signatures, providing an audit trail for FDA 21 CFR Part 11 compliance.

Capture essential information with a 'prompt for value' (mandatory user input) feature, before performing a test.

Laptop displaying VectorPro batch test operations and results

Built for batch testing and automation

Batch testing in VectorPro uses a pre-configured test to create a semi-automatic or fully automatic testing system on sets of products and batches of the products.

It simplifies the use of VectorPro by automatically opening the test and creating a new test with a graph for every sample, exporting data and printing test reports. Test reports can contain overlay graphs or individual test graphs.

This functionality also allows monitoring of the batch progress and can be started, paused and re-started at any time.

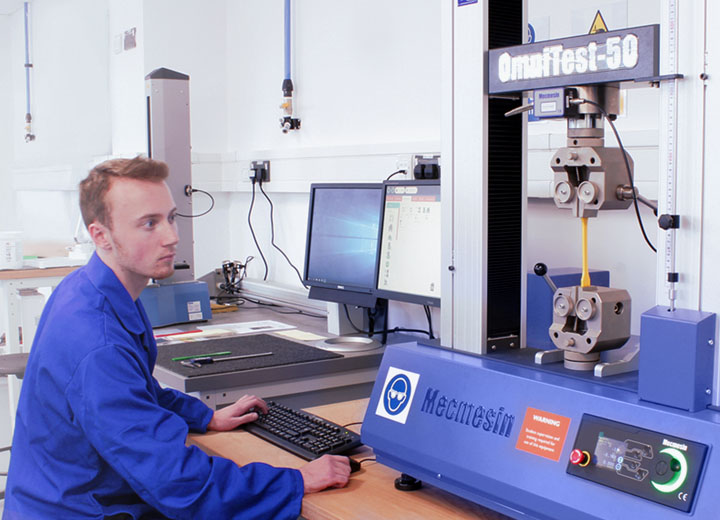

Operator performing materials tenstile test on Mecmesin 50kN universal testing machine

Live performance and realtime results

See exactly how your test specimen is performing with realtime results on a live graph, with data captured at 500 times a second (500 Hz).

Easily change graph axes between stress/strain, load/displacement and load/time to better present and understand test results.

Software screenshot demonstrating pass/fail of test results

Pass or fail indicator

Specify your own pass and fail criteria within each test, for results that immediately alert operators to the status of each test specimen.

A simple 'pass' (tick) and 'fail' (cross) makes interpreting individual results quick and efficient.

Example of generated reports from VectorPro test software

Calcuate results for instant reports and analysis

An advanced and flexible reporting module enables you to configure test reports to present data the way your customer wants to see it.

Built-in calculations for Young's Modulus, Offset Yield, Ultimate Tensile Strength, Nominal Strain and more, makes analysing the data simple.

Customise test report templates with your branding, for your business or your customers.

Software screenshot demonstrating data export and sharing options

Share and analyse data

All test data can be automatically exported in a format of your choice, from text files and tabulated formats, to Microsoft Excel and email. Data can be exported directly through RS-232 for data-analysis packages.

You can also install VectorPro MT on other computers, for sharing customised test routines and datasets with other users in your organisation.

Mecmesin force and torque testing solutions, a brand of PPT Group

We're here to help you

Our team of technical engineers, along with our global network of expert partners, will help you get started and show you how to configure routines to your exact testing requirements.

We are always on hand to support you if you need any advice or guidance before, during, or after installation.

Supported products

MultiTest-dV

Low-force materials tester

The MultiTest-dV configured with an Enhanced Load Sensor, VectorPro MT software and an optional extensometer, transforms this motorised force tester into a basic materials tester.

This makes the MultiTest-dV the ideal choice for quality assurance checks in the QC lab and gives it the power necessary for more in-depth analysis of material properties in the R&D laboratory.
